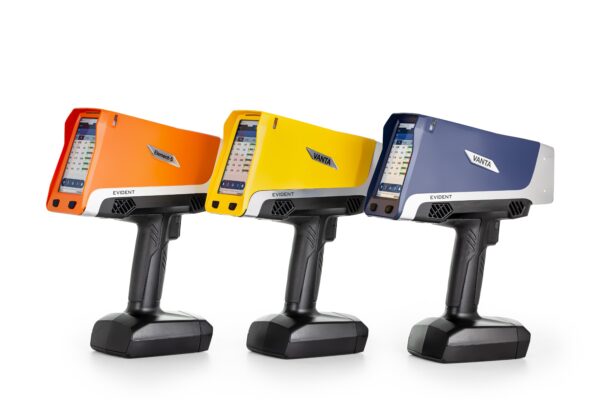

Vanta Handheld XRF Analyzer

Dimensions (W x H x D)

10.4 × 29.6 × 24.1 cm (4.1 × 11.6 × 9.5 in.)

Weight

Max: 1.9 kg (4.17 lb) with battery, 1.67 kg (3.67 lb) without battery
Core: 1.85 kg (4.06 lb) with battery, 1.62 kg (3.56 lb) without battery
Element-S: 1.84 kg (4 lb) with battery, 1.61 kg (3.55 lb) without battery
Element: 1.71 kg (3.77 lb) with battery, 1.48 kg (3.26 lb) without battery

Excitation Source

X-ray tube with an application-optimized anode material.
Max: 4 W with 8–50 kV rhodium anode
Core: 4 W with 8–50 kV silver, 8–40 kV rhodium, or 8–40 kV tungsten anode
Element-S: 4 W with 8–50 kV silver anode
Element: 2 W with 8–35 kV tungsten anode

Primary Beam Filtration

Max and Core: 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot
Element-S: 4-position filter wheel
Element: Fixed aluminum filter

Detector

Silicon drift detector with a high-sensitivity graphene window

Power

Removable 14.4 V Li-ion battery (with hot-swap capability on Max only) or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max

Display

800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control

Operating Environment

Temperature range for Max and Core: -10 °C to 50 °C (14 °F to 122 °F), and continuous full duty cycle with optional fan
Temperature range for Element: -10 °C to 45 °C (14 °F to 113 °F)
Humidity: 10% to 90% relative humidity non-condensing

Drop Test

Military Standard 810-G 4-foot (1.2 m) drop test

IP Rating and Detector Shutter

Max and Element: IP54* dust protected and protected against water splashing from all directions
Core: IP55* dust protected and protected from low-pressure water jets from all directions
Max and Core: Solid detector shutter to help prevent detector damage
*In-use position

Pressure Correction

Max and Core: Built-in barometer for automatic altitude and air density correction

GPS

Max: Embedded GPS / GLONASS receiver

Operating System

Linux
Cloud enabled with user fleet manager capability

Data Storage

microSD slot with removable 1 GB industrial SD card included

USB

(2) USB 2.0 Type-A ports for accessories such as Wi-Fi, Bluetooth, and USB flash drives
(1) USB 2.0 Type Mini-B port for connection to computer

Wi-Fi^®

Supports an 802.11 b/g/n (2.4 GHz) cable optional USB adapter

Bluetooth^®

Supports Bluetooth with an optional USB adapter

Aiming Camera

Max and Core: Optional full VGA CMOS camera

Panorama Camera

13-megapixel CMOS camera with autofocus lens (optional)

Warranty

Three-year warranty

Selected Optional Accessories

Max and Core: Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, and Probe Shield
Element: Field Stand, Soil Foot, and Holster
